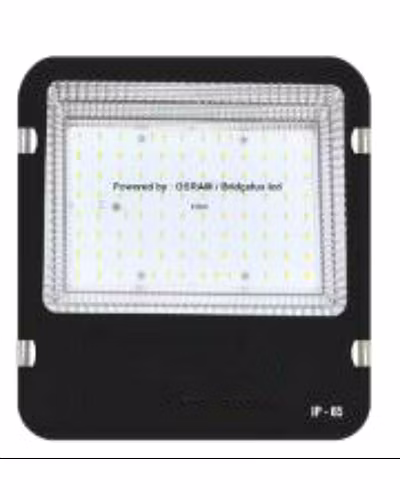

LED FLOOD LIGHT DOWN CHOKE STAR
| ITC-HSN: | 9405 |
| Minimum Order Quantity: | 2000 |
| Accept Small Orders | Yes |
| Fulfilment Capacity (Per Month): | 200000 |
LED FLOOD LIGHT DOWN CHOKE
Efficient heat sink design integrated in high pressure die cast aluminium housing lP65 protection
• Heat resistant toughened glass
• LED as per LM80
• Conformance to IEC 62384, IEC 61347-2-13, IEC 61000-3-2
APPLICATION
• Lighting of small to medium sized billboards
• Parking areas around building / residential complexes
• Security lighting
• General area lighting
• Lighting of monuments
-
Additional Information
Lighting of small to medium sized billboards
• Parking areas around building /
residential complexes
• Security lighting
• General area lighting
• Lighting of monuments
Energy savings possibilities upto 70%
compared to conventional Halogen flood
• Housing of high pressure die-cast aluminum designed to act as heat sink for efficient heat dissipation and painted in
attractive black colour with textured finish
• Electrochemically brightened andanodized aluminum reflector
• Luminaires with mounting bracket with aiming adjustment
• Heat resistant toughened glass ‘lighting window’
• Replacement for halogen lamps luminaires upto 1000W
specification
System wattages: 25/30/50/60/70/72/80/100/120/150/200• Luminaire ecacy: >90 Lm/W (+10%)
• CCT: 6500+300K
CRI: >70• IP: 65
• THD: <15%
Watt Housing PCB Area Driver AreaWeight KGs
25-30 0.625 GRAM - 135X85MM 75X130X55 MM50-72 1 kg - 140x100 mm 75x154x75mm80 1.400kg - 184x134 mm 70x180x75mm100-120 1.900 kg - 230X155 MM 70X220X95 MM150 2.600KG - 260X200MM 60X28X100MM200 2.600KG - 260X200MM 60X28X100MM
-
